After provisioning an iOS device, you can manage it via the console through a blueprint or its device or group settings. Make the most out of your multi-OS fleets by understanding how blueprints and settings affect devices.
In this article:
- Managing iOS Settings in a Blueprint
- Apps & Configuration
- Device Mode
- Application Management
- Connectivity
- Device Security
- Display & Branding
- Esper Settings
- Files
- Hardware Settings
- Platform Services
- Sound
- System Updates
- Time & Date
- Managing iOS Devices & Groups Settings
Managing iOS Settings in a Blueprint
Blueprints control a device’s look and behavior. They’re designed to manage fleets, including multi-OS ones.
To create a blueprint, go to Blueprints Manager > Create Blueprint.
Click on the iOS tab to manage the iOS settings for that section.
Understanding blueprint terms
Version Number: This blueprint’s version. Whenever you make a change, a new version will be saved in the Blueprint Manager.
Published Status: Indicates if the changes are published or not. Blueprints must be saved before they can be published.
Sections: The sections that control device configurations such as Wi-Fi connectivity, App Installations, and other software and hardware settings.
How to Apply
Blueprints determine which configurations are applied and at what point they should be applied.
Always Apply: The strictest provisioning method. Every time the device interacts with the console, the setting in the blueprint will be applied even if the end-user makes changes, those changes will reset.
For the device user, this means that they are free to change the volume. However, the console user will need to explicitly set the device back to the way it is described in the blueprint to reach its desired state.
For a console user with permission to make changes to the device, even if they change the device’s volume from the console, the blueprint will revert these changes when it reaches the device.
The blueprint creator will be able to change the volume if they make a change to the volume setting in the
Provision Only: The setting will apply once–at the time of provisioning. Some features make sense to set as Provision Only, such as time zone settings if you are provisioning devices that will be shipped to different regions.
Ignore: The setting will be ignored. At the time of provisioning, it will have whichever settings the device had by default or before provisioning. Changes can be made to this setting at any point.
In some cases, it makes sense to ignore a device’s brightness settings and let the user control it. Console users with the ability to interact with that device or group will also be able to make changes to these settings.

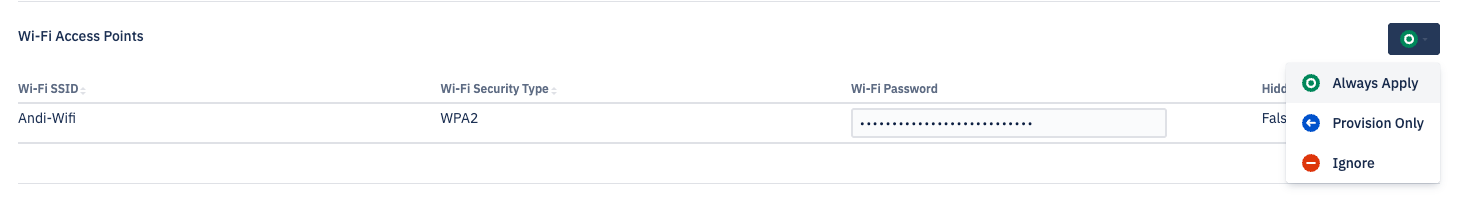

You can quickly change these settings by using the top dropdown menu of each section.

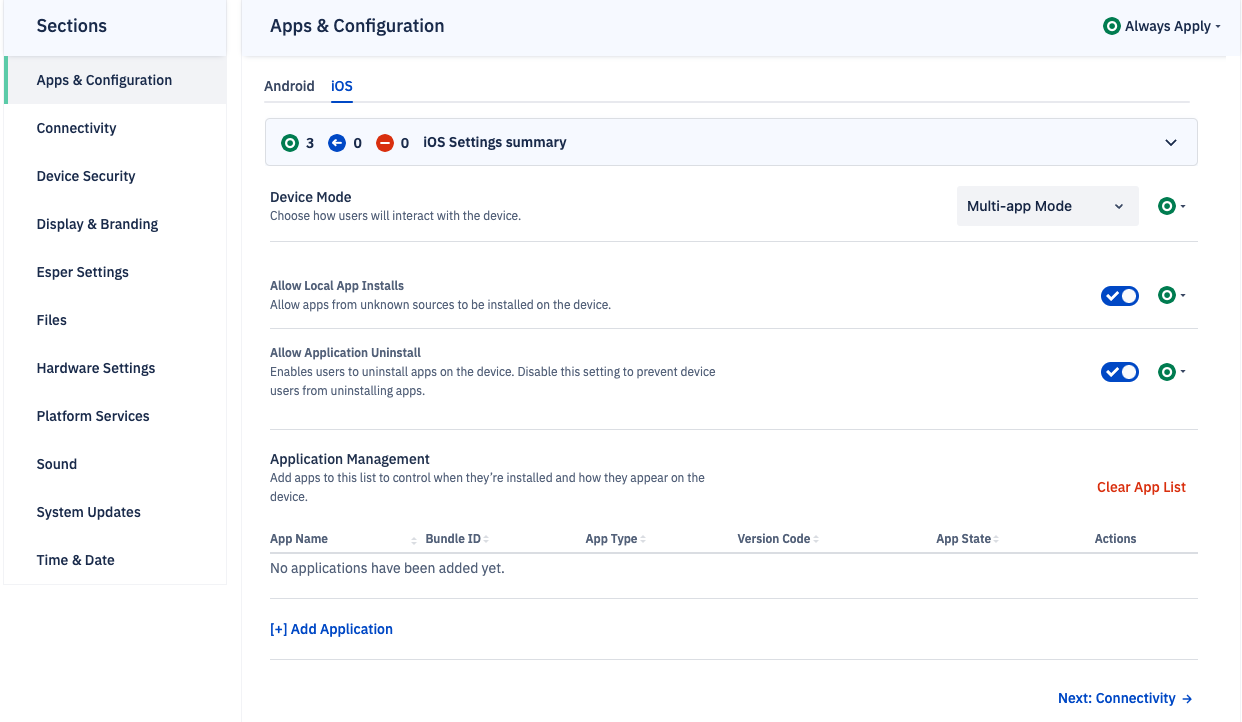

Apps & Configuration
Device Mode
Device Mode determines how users will interact with the device. There are two modes: multi-app mode and kiosk mode.
Multi-app Mode
The device mode function lets you switch a device between multi-app mode and kiosk mode. The end user can see and use all the approved apps when a device is in multi-app mode.
Kiosk Mode
When a device is in kiosk mode, the device acts as a kiosk, and end users can only interact with the kiosk app, similar to a pinned app. However, this mode doesn't prevent other apps from running in the background. Other apps can also be accessed from the kiosk app.
To change a device to kiosk mode, choose kiosk mode in a blueprint. Then, select the kiosk app from the App Management section of the blueprint.
You may notice an error when you select this mode.
To resolve it, select the kiosk app from the Application Management section. Scroll down in the Apps & Configuration section to view the Application Management section.

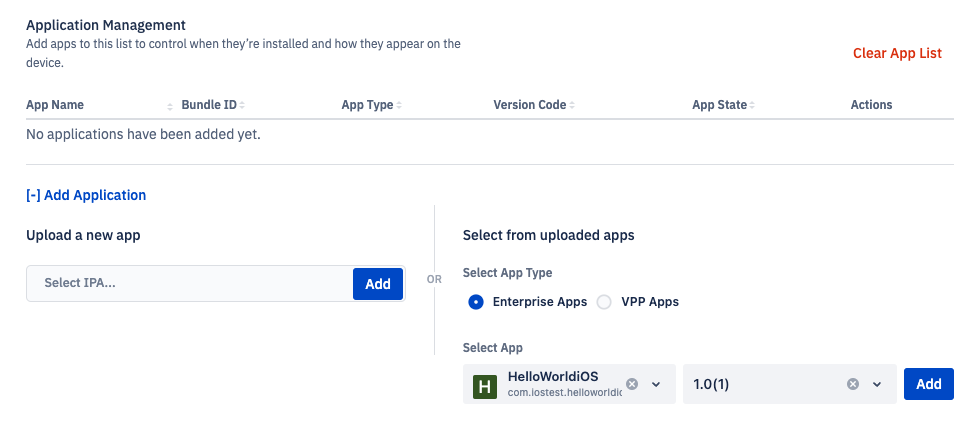

Application Management
Add apps from Apple’s® Volume Purchase Program (via Apple Business Manager) or locally via an IPA upload.
To add an application, click on Add Application.
You’ll have the options to:
- upload an IPA.
- choose from an uploaded application and version.
- add an application from the App Store® (if enrolled in VPP).

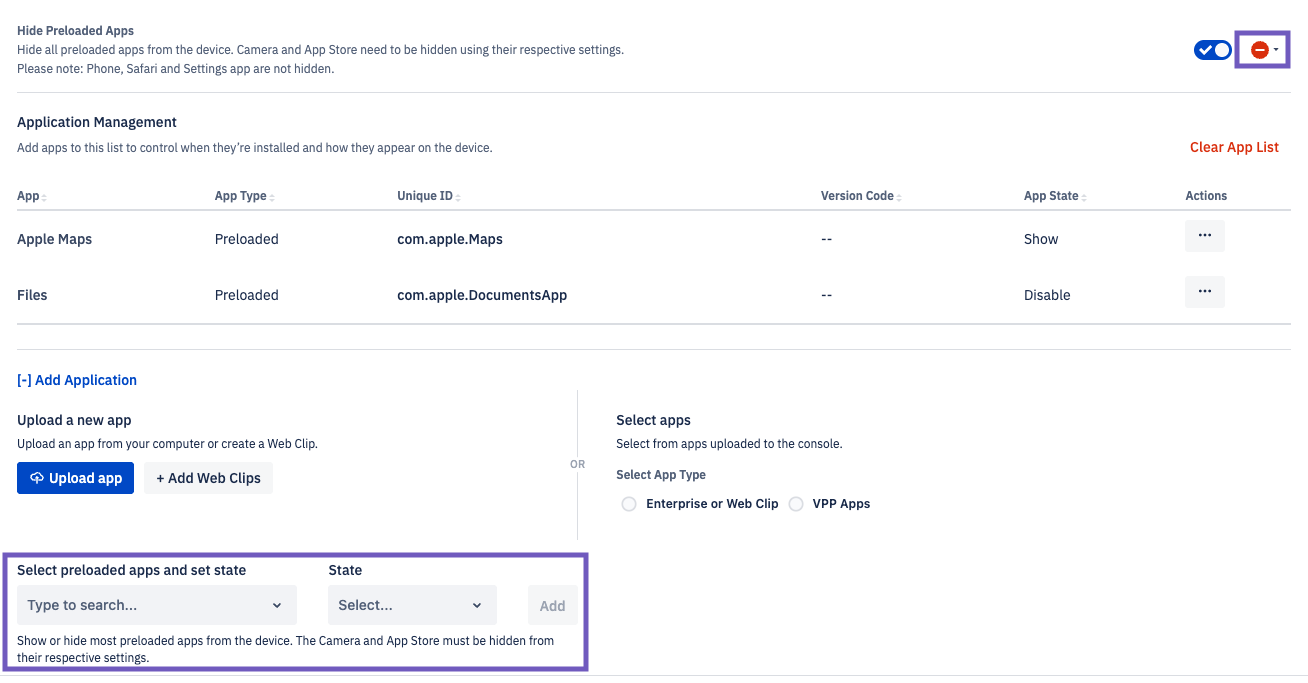

Managing preloaded apps
Need granular control over your preloaded apps? Set the state for preloaded apps through a blueprint.
Set Hide Preloaded Apps to Ignore.
Then, select the app and its state from the Select preloaded apps and set state menu. You can set these apps to Show or Disable.
All other preloaded apps will be hidden (except the Camera, App Store, Esper Settings, and System Settings).
Applying managed configs to iOS apps
To add a managed config to an iOS app, click on that app in the Apps & Configuration section of a blueprint.
Then enter the keys and values in XML-format. Refer to the app’s documentation for managed configuration information.
When done, apply the changes.Managed configurations will apply only if they are supported by the app.
<dict>
<key>key</key>
<string>value</string>
</dict>

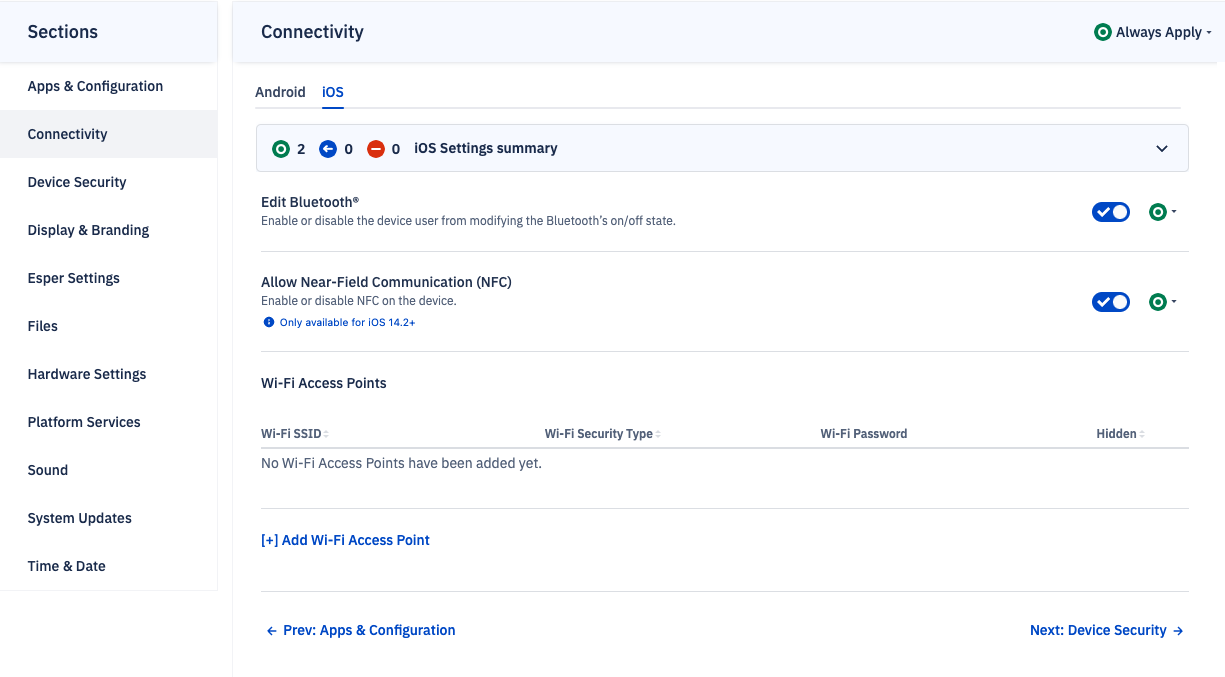

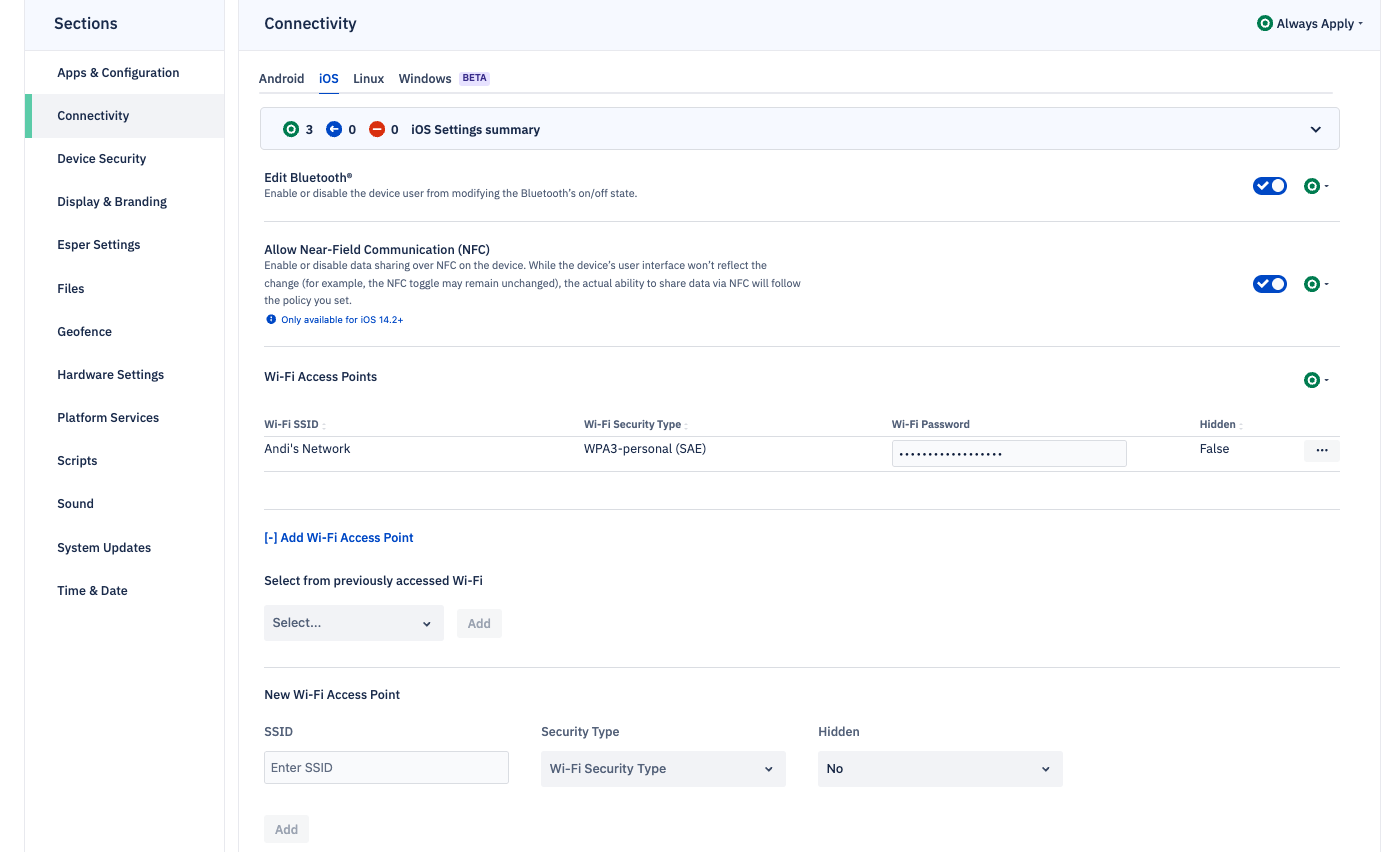

Connectivity
Edit Bluetooth®
Once enabled, the user will be able to change the device’s bluetooth settings (from on to off, or from off to on). If disabled, the user will not be able to change the bluetooth settings (i.e., they won’t be able to turn it on if it’s off, or won’t be able to turn it off if it’s on).
Allow Near-Field Communication (NFC)
If you want device users to use Near-Field Communication (NFC) on their devices when supported, enable NFC if you don’t, disable it. If any applications require NFC, make sure this setting is enabled. Only available for iOS 14.2+.

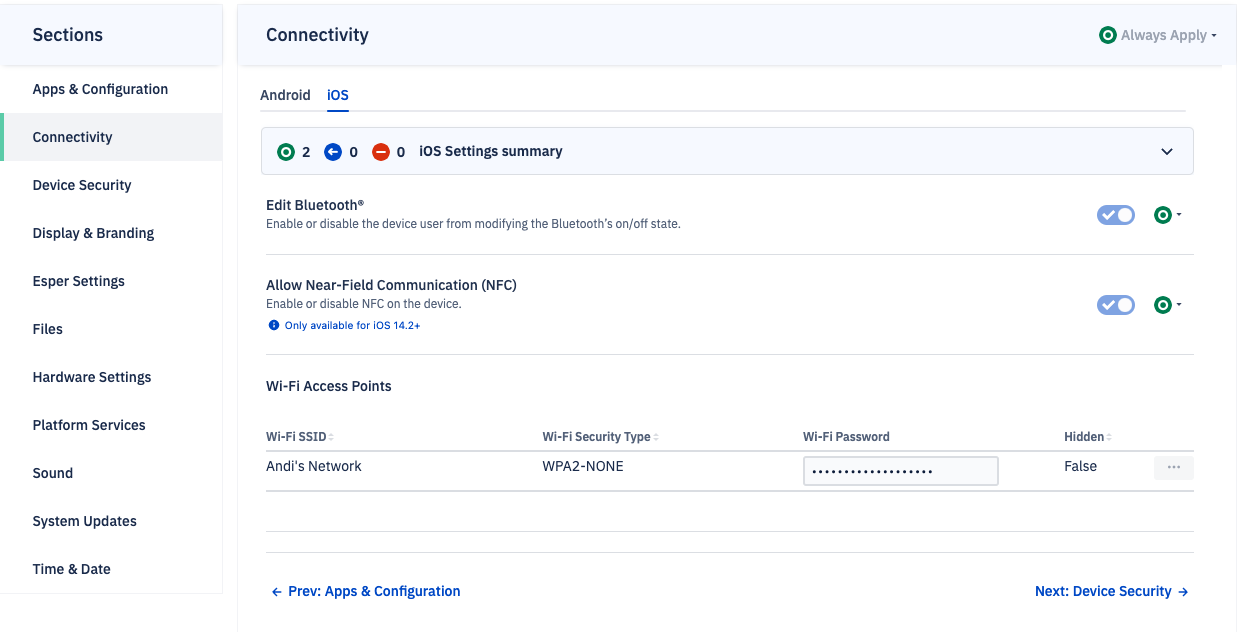

Wi-Fi Access Points
Add Wi-Fi access points to connect devices to your network. Once added successfully, the network will appear under your list of networks.
If you added a network from the Android tab, you’ll need to add the network to the iOS tab as well, even when adding devices to the same network.

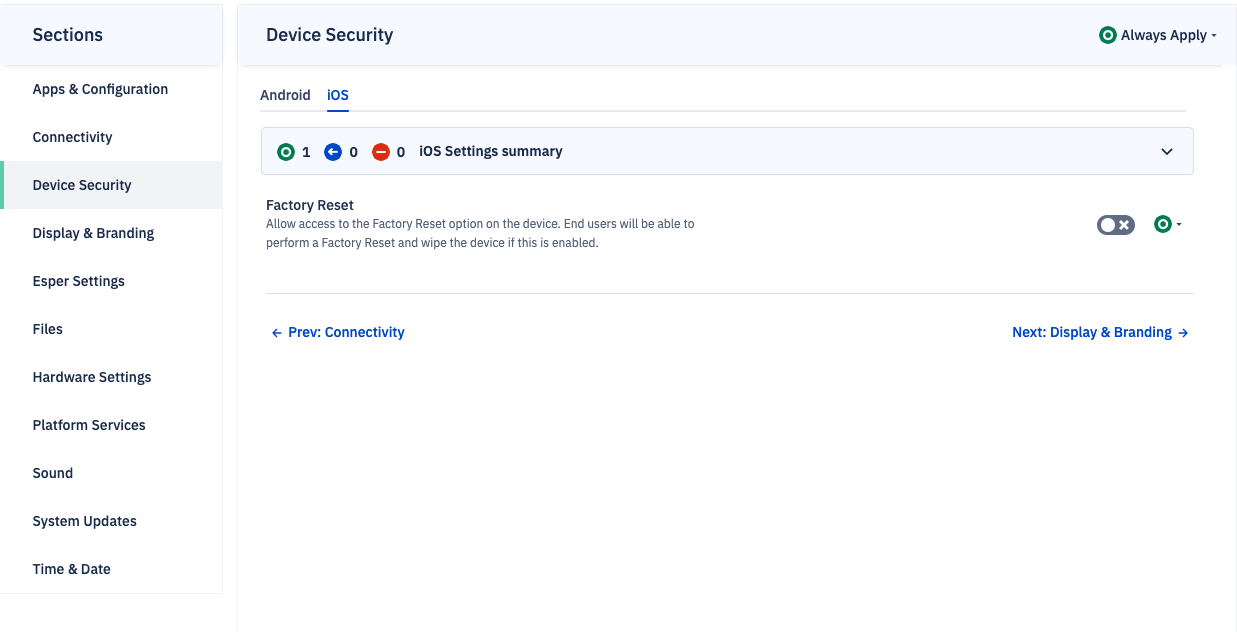

Device Security
Factory Reset
If enabled, device users will be able to perform a factory reset and wipe the device. If disabled, the device user will not be able to factory reset and wipe the device. On the device, this action is called "Erase all content and settings."

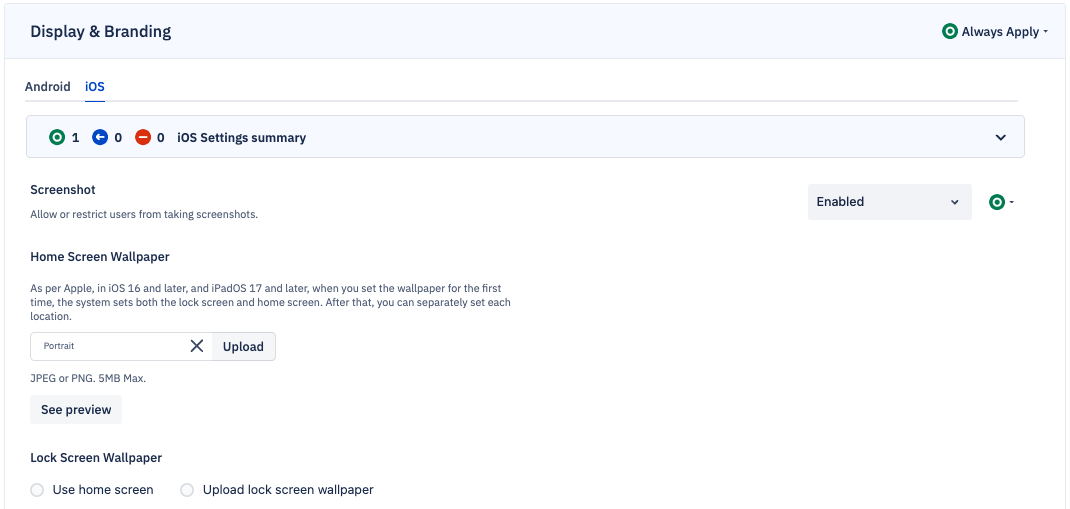

Display & Branding
- Applying a wallpaper may fail during a converge. If this occurs, try restarting your devices and converging again.
- Both lock screen and home screen are set when you set up wallpaper for the first time. Afterward, you can set each separately.
Screenshot
If enabled, allows device users to take screenshots. If disabled, prevents users from taking a screenshot.
You will need to enable screenshots to conduct a remote reviewer session.
Home Screen Wallpaper
Upload a wallpaper for your home and lock screens. These images should be in portrait format. See Apple’s documentation for suggested resolutions.
Lock Screen Wallpaper
Select home screen to set the lockscreen or upload a different screen wallpaper.
Esper Settings
Unlike Android devices, iOS devices do not currently have access to the Esper Settings app.

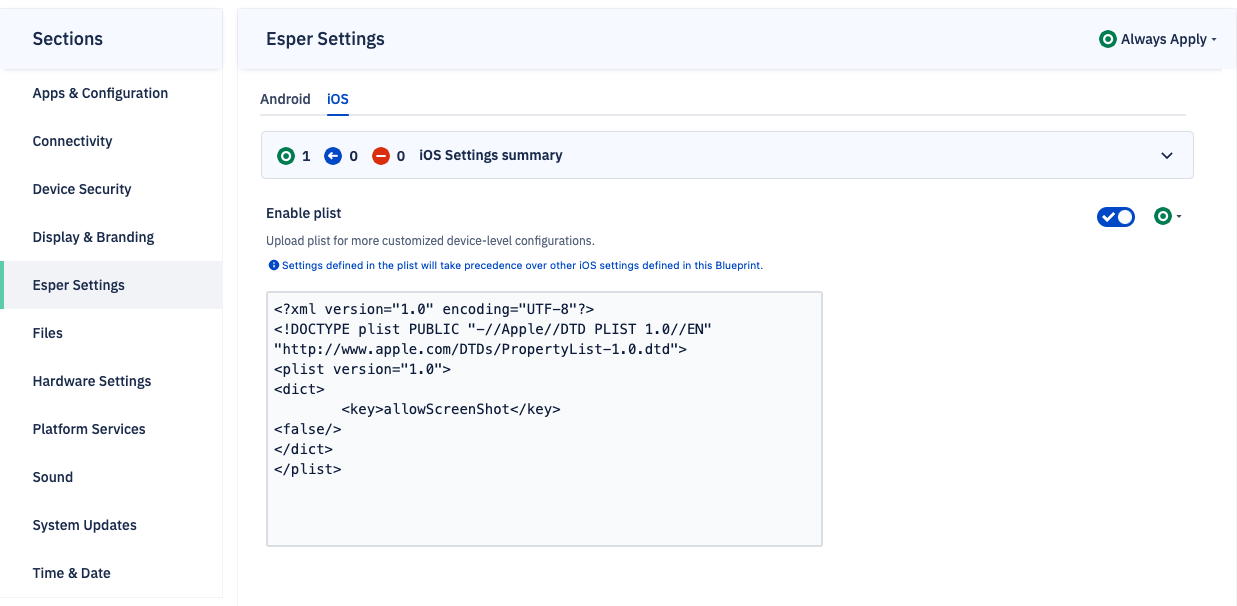

Enable plist
Use a plist to customize device behavior beyond its available blueprint settings.
When enabled, allows you to paste a plist. The settings defined in the plist will take precedence over the settings defined in the blueprint. For example, if you enabled screenshots in the blueprint and disabled screenshots in the plist, the device user would not be able to take screenshots.
plist restrictions for the Camera app and App Store won't work, but these can be disabled from their respective toggles.
See Apple’s documentation for a list of Device Management Profile Restrictions.
Files
There are currently no File management features available for iOS devices.

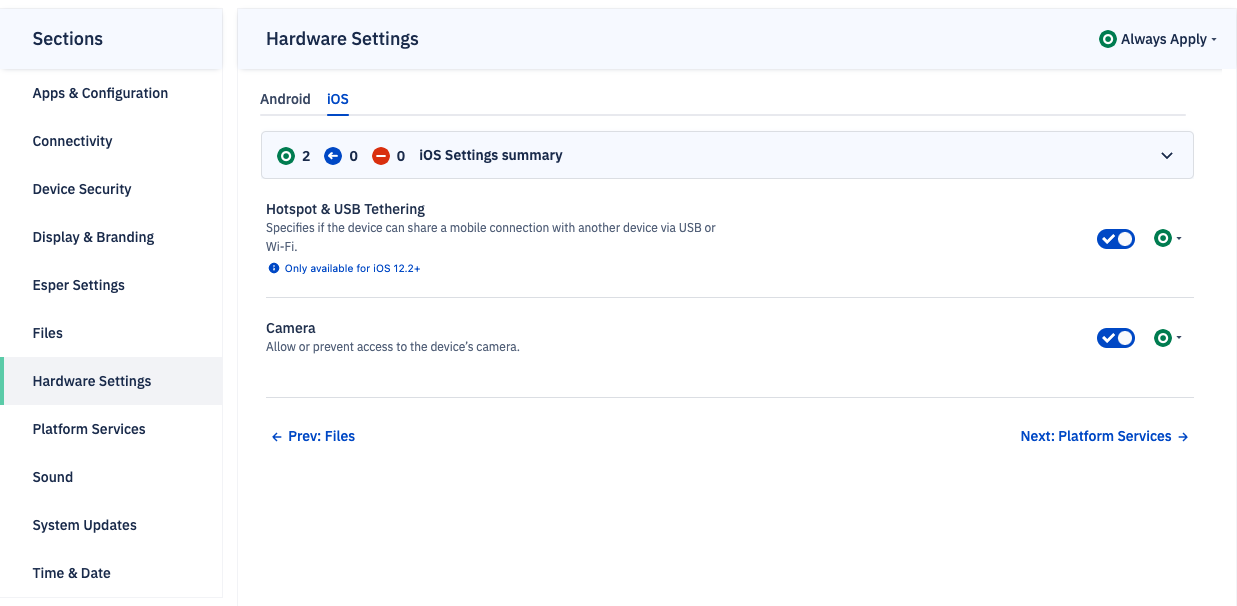

Hardware Settings
Hotspot & USB Tethering
Enable or disable the device user from sharing a mobile connection with other devices via USB or Wi-Fi. Only available for iOS 12.2+.
Camera
Enable or disable the device user from using the camera.

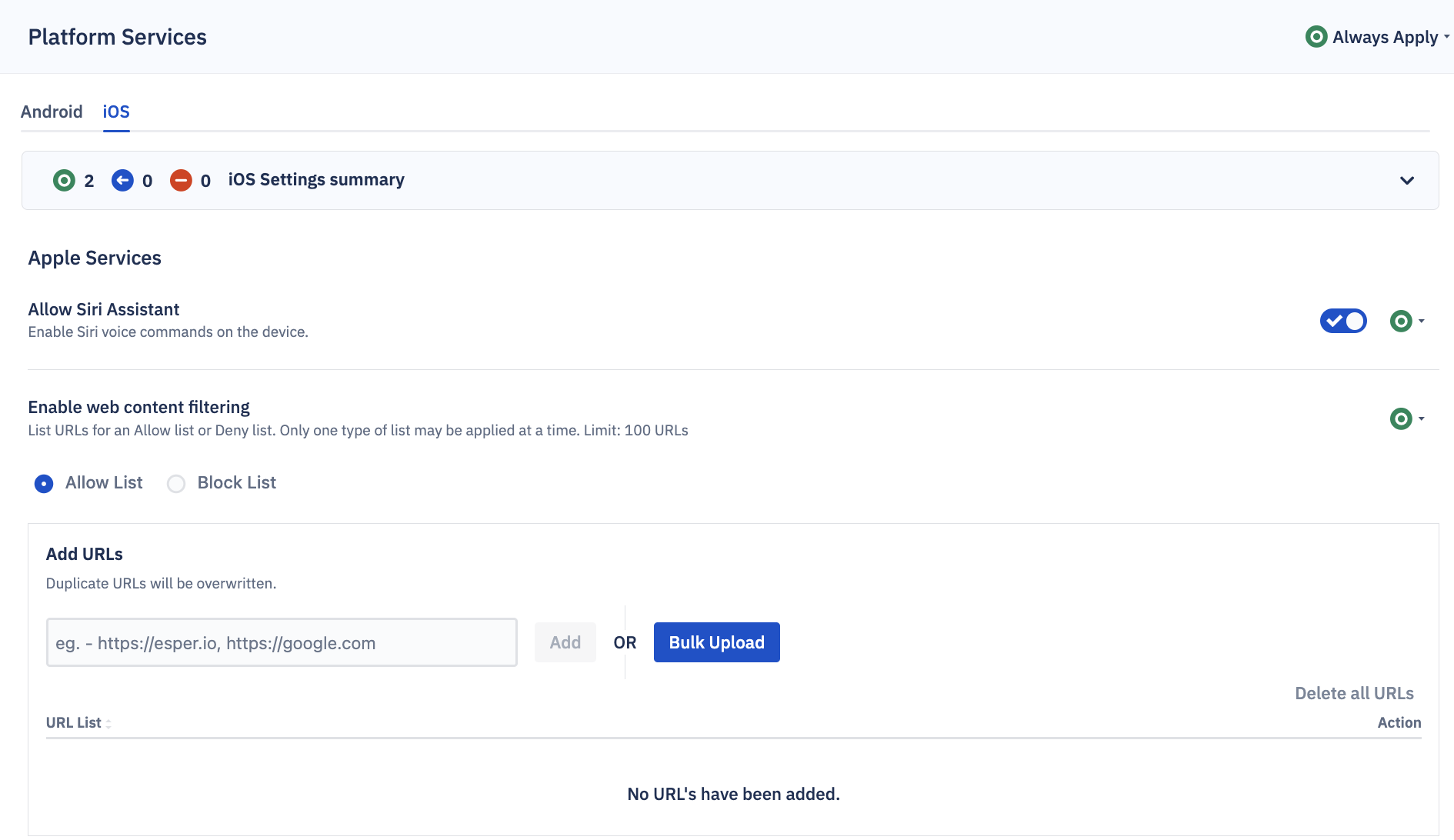

Platform Services
Allow Siri® Assistant
Allow or disable Siri voice commands on the device.

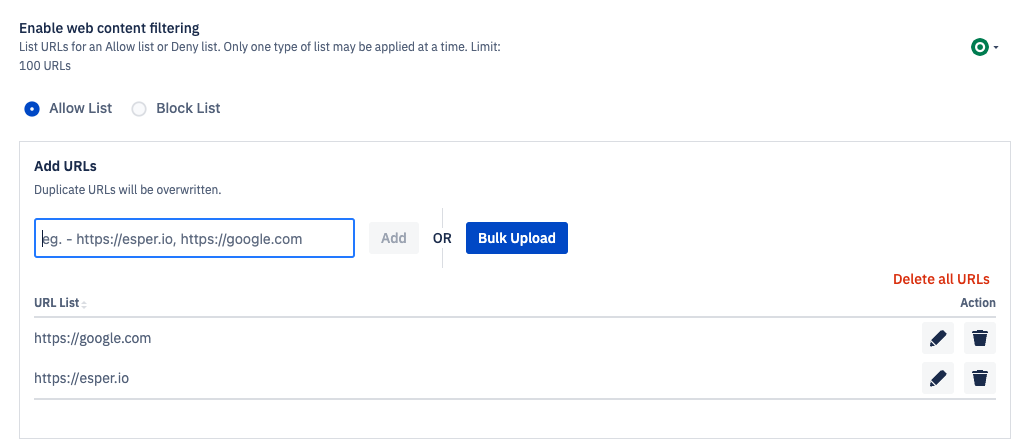

Enable web content filtering
Create a list of websites to allow or deny when users browse the internet. Limit: 100 URLs. Duplicate URLs will be overwritten.
Only one type of list may be enabled at a time. To add multiple URLs, separate each URL by a comma.
You can bulk upload a list of URLs through a CSV by clicking on the Bulk Upload button. Download the sample file for an example.
Sound
There are currently no Sound management features available for iOS devices.
System Updates
Defer iOS system updates for up to 90 days after the software release date. For example, if a software update was released 30 days ago, the device user will receive a notification to update after 60 days (even when setting the defer period to 90 days). Only available for iOS 12+ devices.

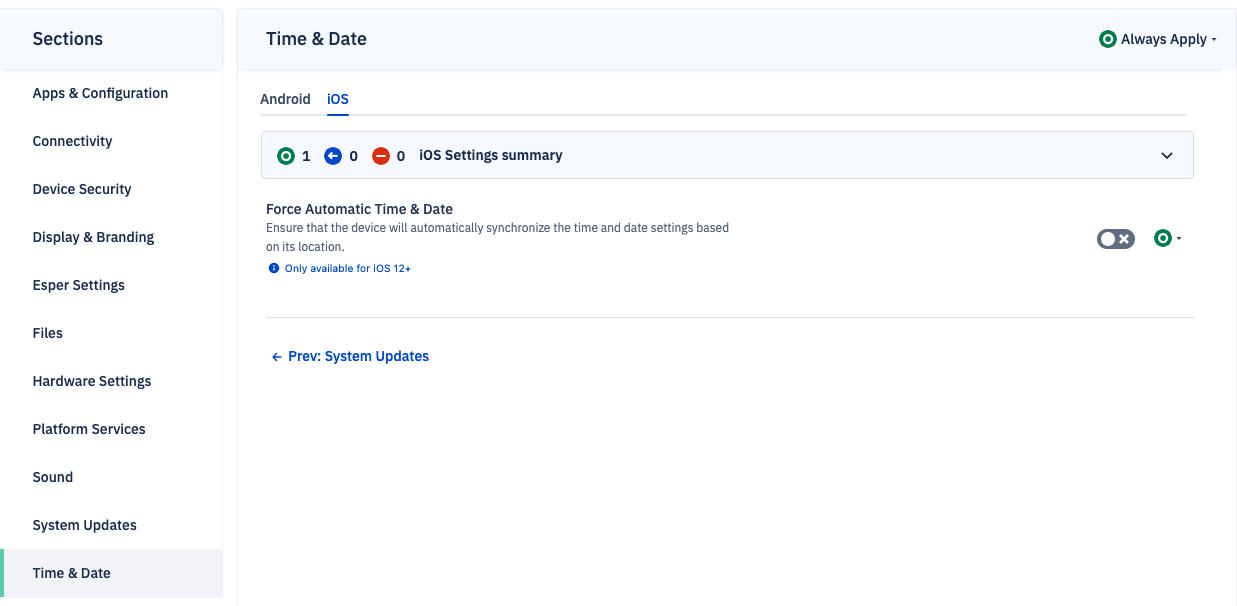

Time & Date
Force Automatic Time & Date
Enable automatic syncs based on location. Only available for iOS 12+.
Managing iOS Devices & Groups Settings

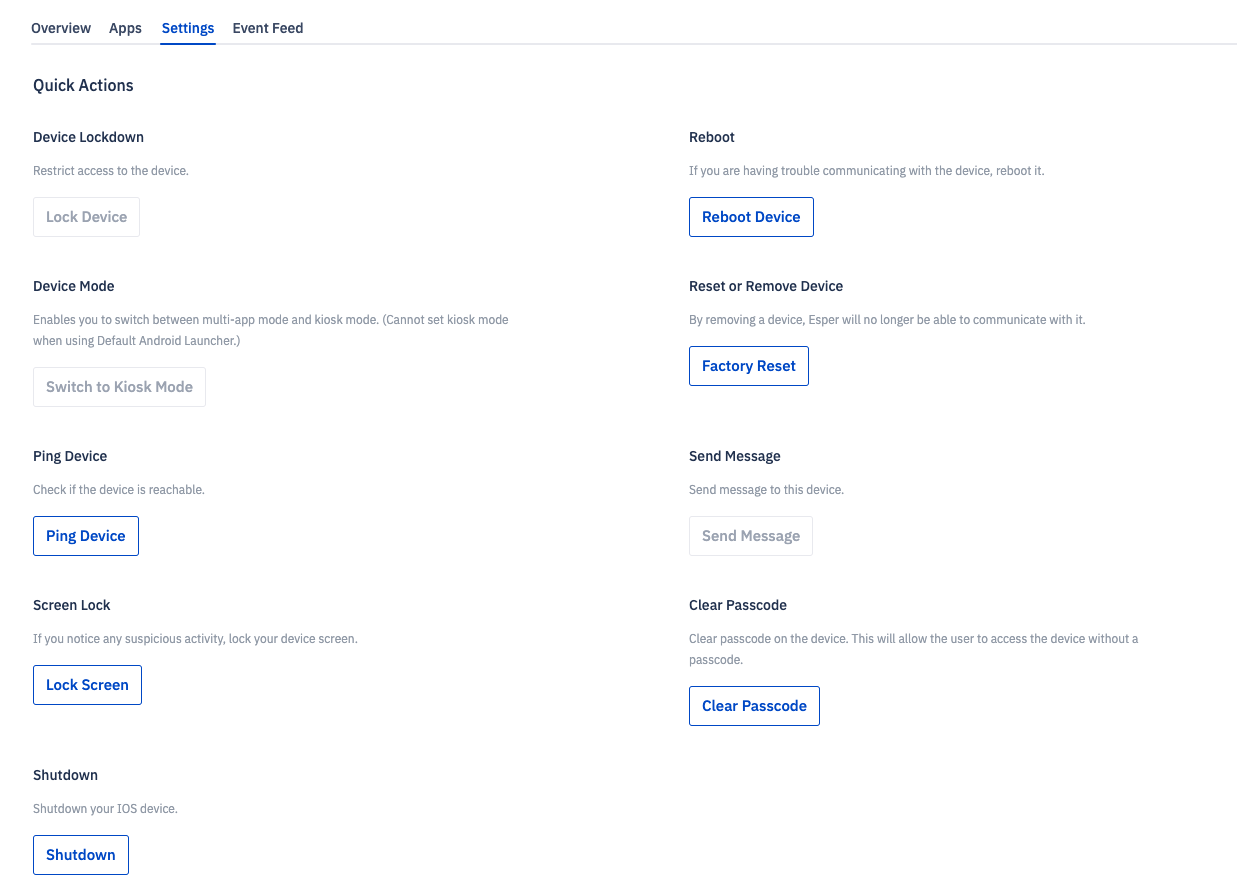

For individual devices

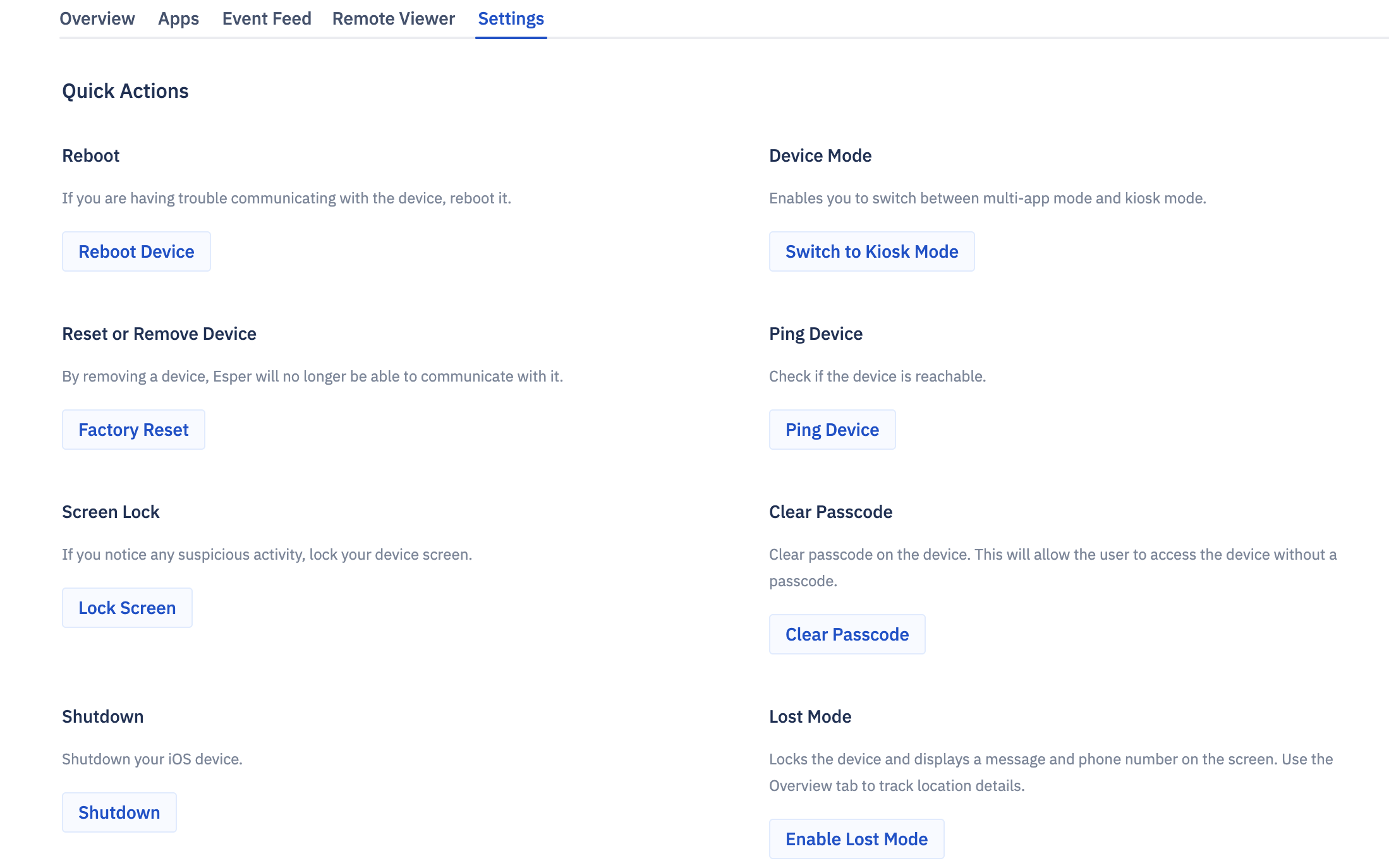

Perform actions on an iOS device from Devices & Groups. Click on the device and then go to the Settings tab.
Ping Device
Pings the device and checks if the device is reachable.
Screen Lock
Locks the device’s screen. iOS devices return to the home screen.
Shutdown
Shut down the iOS device.
Reboot
Reboots (restarts) the device.
Reset or Remove the Device
Removes Esper and factory resets the device. Learn more about factory resets.
Clear Passcode
Removes the passcode. Passcodes can interfere with the device’s ability to receive a blueprint or converge command. We recommend disabling passcodes. The Clear Passcode command will remove a passcode for devices with a passcode enabled.

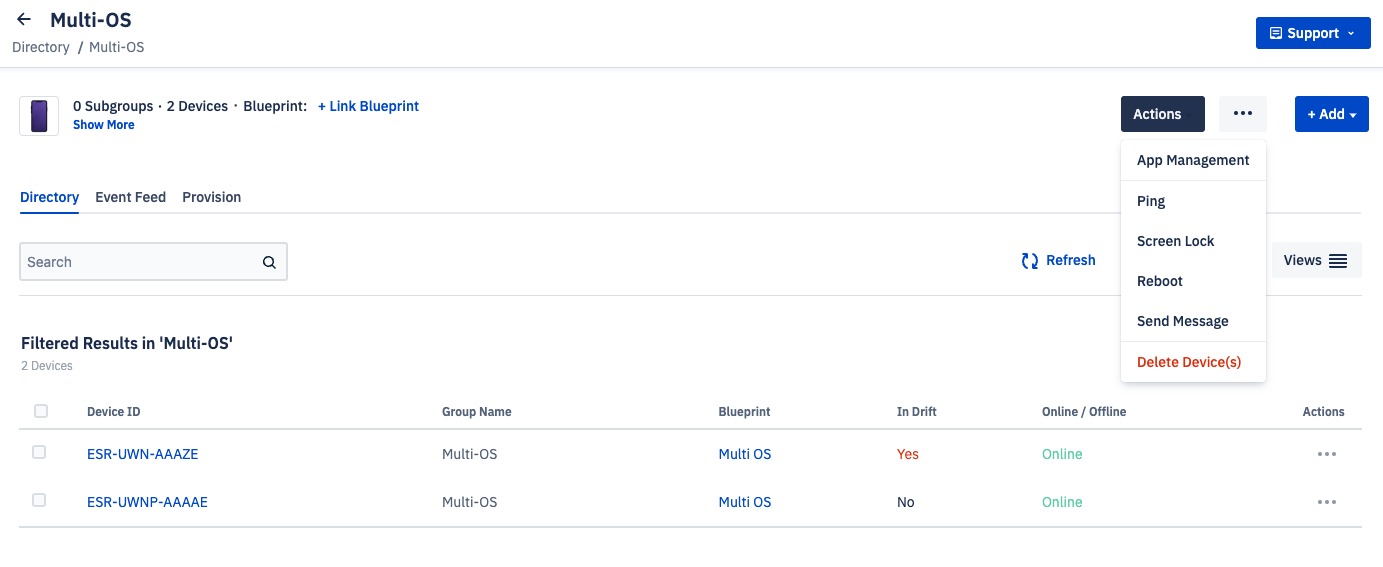

For Devices in Groups
To manage devices as a group, click on the group in Devices & Groups and click on the Actions button.
App Management
Install or uninstall the group’s applications. See the Managing iOS Applications article for more information.
Ping
Pings the device and checks if the device is reachable.
Screen Lock
Lock the device’s screen. iOS devices return to the home screen.
Reboot
Reboots (restarts) the device.
Send Message
Sends a broadcast message to devices. Only for Android devices.
Delete Devices
Remove the devices from Esper and/or Factory Reset them. Learn more about removing iOS devices or Android devices.
