Android devices with Google Mobile Services (GMS) support and a camera can be enrolled and provisioned onto Esper using the 6-tap QR code onboarding method. The particular onboarding screens and device onboarding flow vary across Android versions.
Notes:
-
6 Tap QR Code support was first delivered in Android 7. On some Android versions, primarily Android 9 and above, some of these screens may not appear at all.
-
Xiaomi/Redmi devices do not support a 6-tap onboarding method.
Device makers and carriers customize the setup process. You'll likely encounter unique setup screens specific to your device.
The steps to onboard using this method are outlined below:
Step 1: Begin by factory resetting your device.

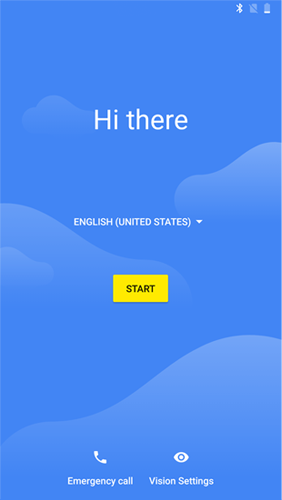

Step 2: Once the factory reset is completed, on the first setup screen, tap anywhere on the screen six times.

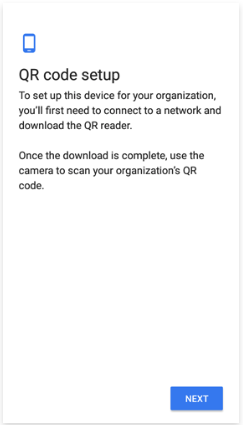

Step 3: If your device first needs to download the QR code reader, you’ll see the QR code setup screen. Suppose you see this screen go to the QR Code Reader Setup section.

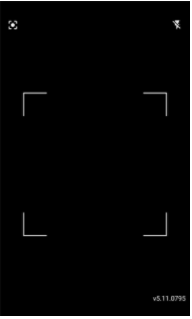

Step 4: If your device has the QR code reader in ROM, after tapping six times in the open space of the first set up screen, the QR code reader screen will be opened.

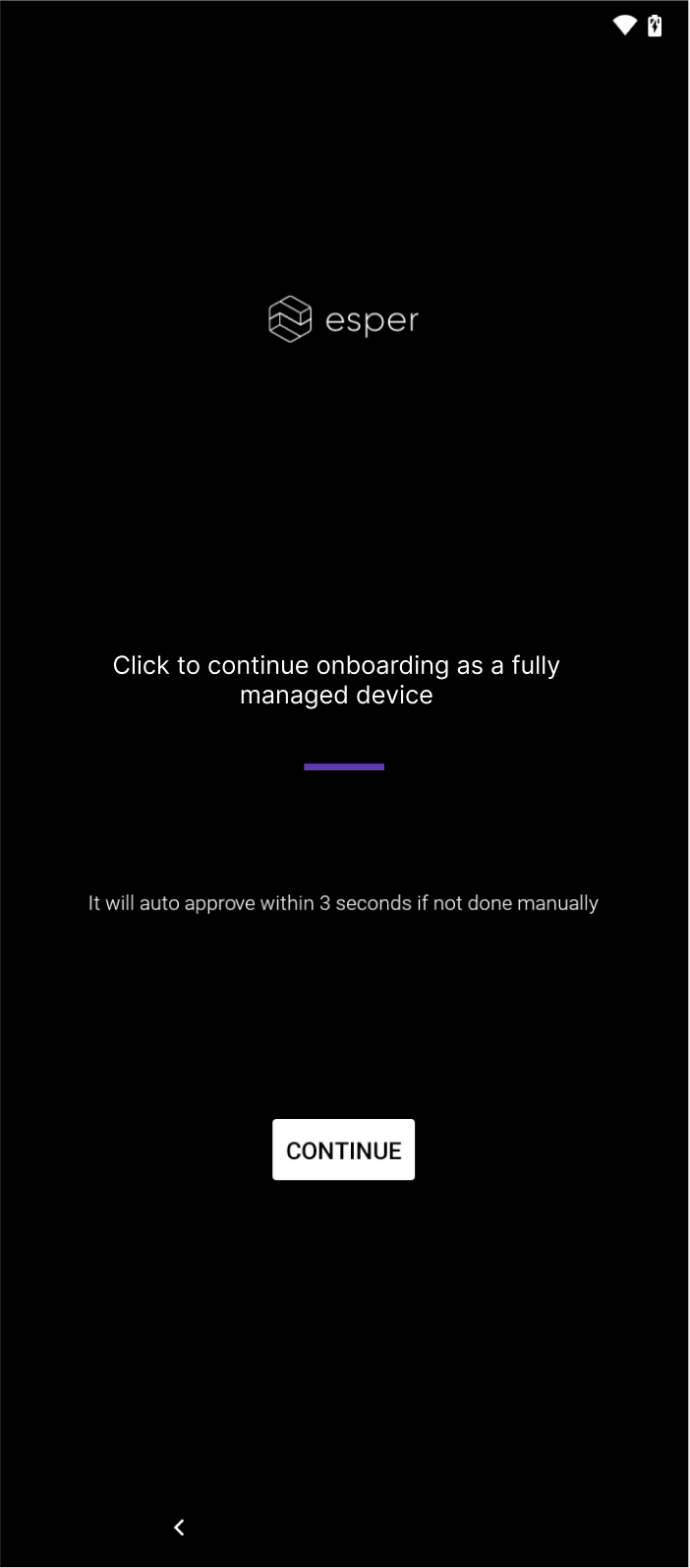

After scanning the QR code, if you're on a device with Android version 10+, tap Continue.

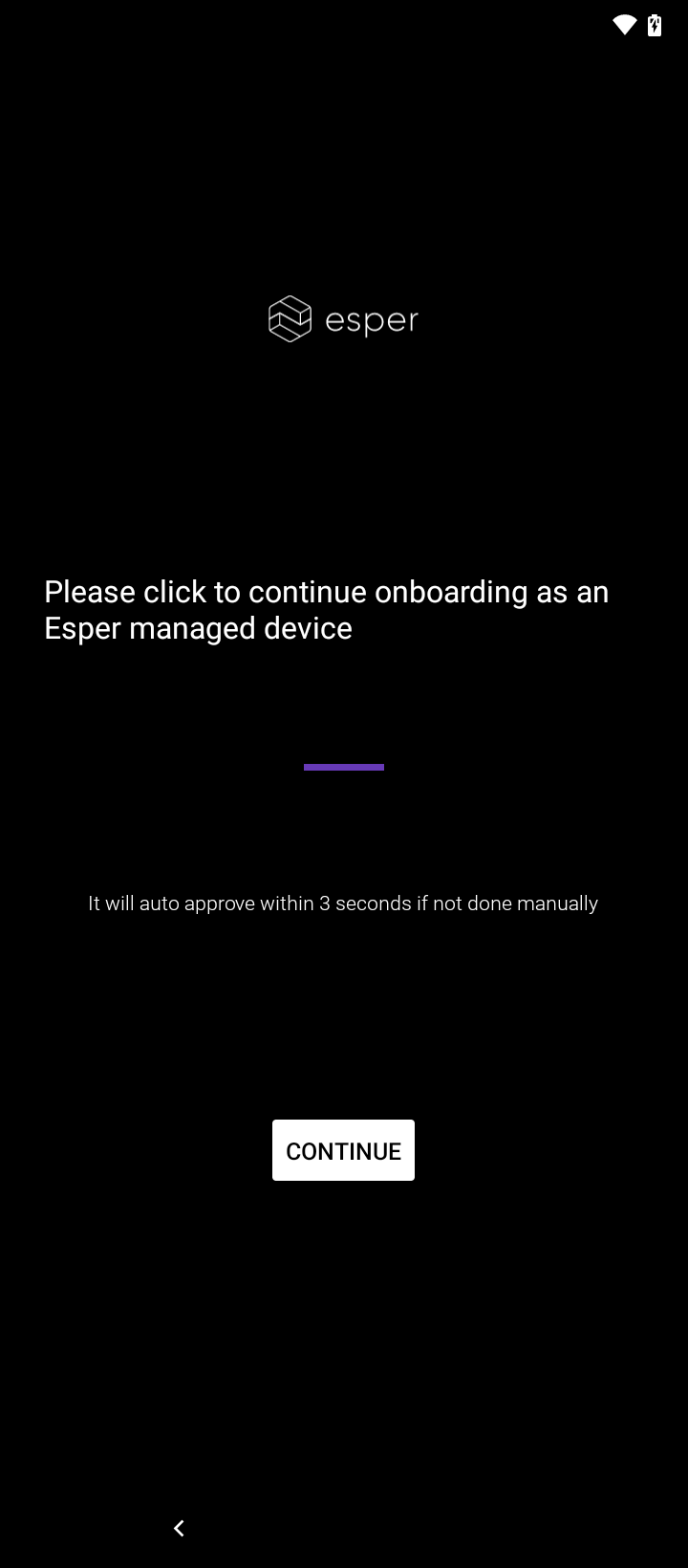

Then, tap Continue again on the next screen.
Step 5: In the Esper Console, navigate to Provisioning Methods.
Select 6-Tap QR Code from the provisioning method dropdown. Then click on the Blueprint tab.
Optionally select the Group for the device. If that Group has a linked Blueprint, the Blueprint will be automatically selected.
Then select the Provisioning Blueprint.
On devices with Android 10+, you'll have the added option to add provisioning Wi-Fi access points. To do so, open Additional Settings and select the provisioning Wi-Fi. You can click on Manage Provisioning Wi-Fi to open the Provisioning Wi-Fi menu.

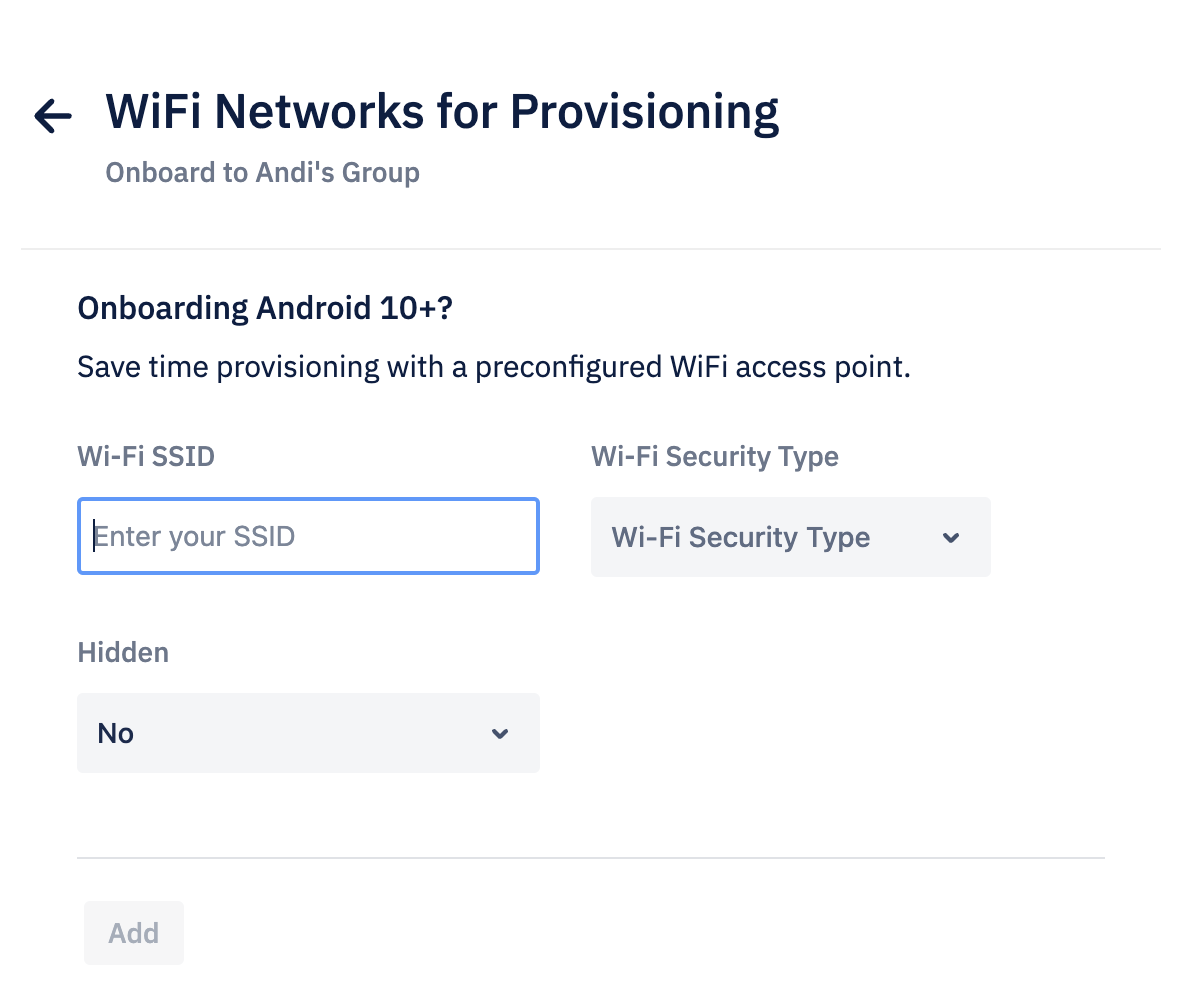

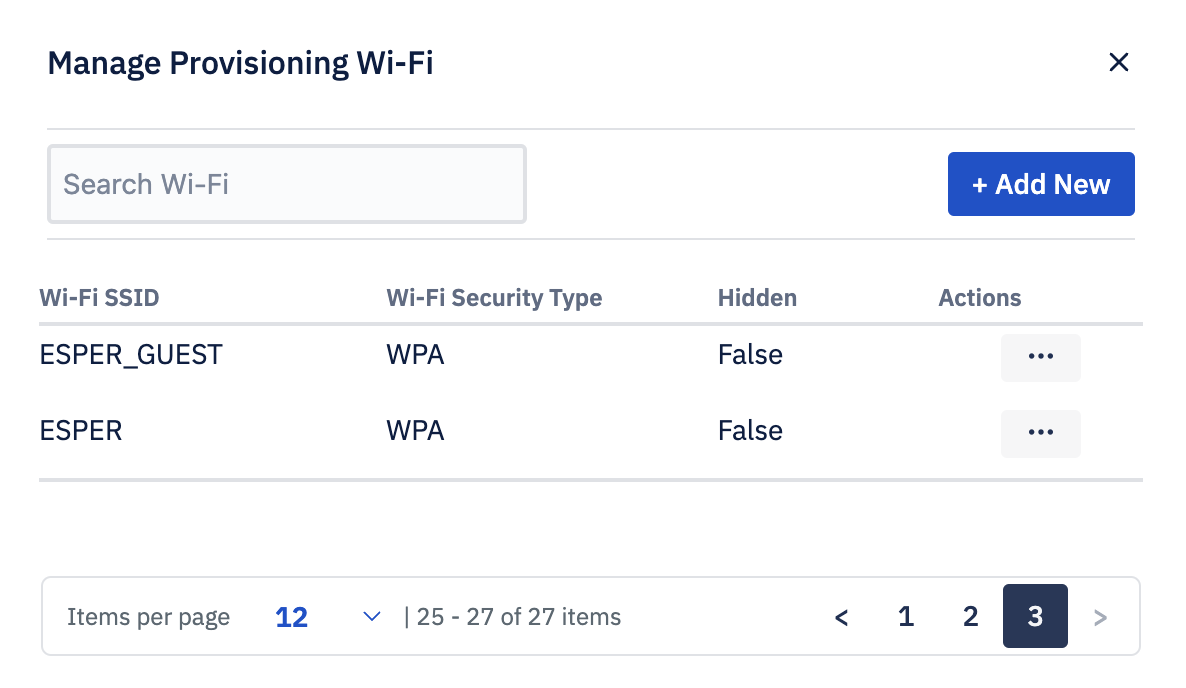

In the Provisioning Wi-Fi menu, click on Add New to add a new Wi-Fi access point.
Add the Wi-Fi access point credentials and then press Add.
Step 6: Hold up the device’s camera to your computer screen, centering it on the QR code.
The QR code is densely populated. If your device’s camera has trouble scanning it, follow these tips:
-
Increase your computer’s screen brightness
-
Adjust the distance between the device camera and the screen
-
Hold the device still for a few seconds once you have adjusted the distance.
Step 7: If your device does not have an active cellular data network connection or isn’t set up to connect to a Wi-Fi access point specified in the QR code to use for onboarding, you will need to connect the device to the internet either using the cellular data or via Wi-Fi. To do so, you will need to either enable your SIM or enter your Wi-Fi access point credentials.
Step 8: You may then see a screen to accept specific terms from Google regarding Esper managing your device. Click ACCEPT & CONTINUE.

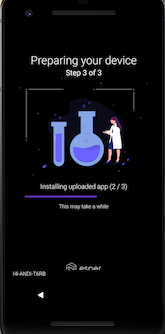

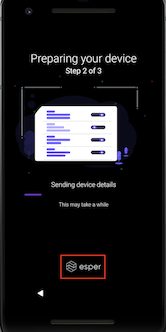

Step 9: Once the Esper agent has successfully downloaded, onboarding will start.
If you wish to exit the onboarding process for any reason, click on the Esper logo six times to bring up the option to factory reset the device.
Step 10: If your Blueprint enables Google Play, Google Play Services will be updated. Be patient during this process, as it is conducted by Google and depends on their current service quality.
Often, the device will complete onboarding without any permissions needing to be granted on the device. Occasionally, you will need to resolve permissions for Esper to modify system settings and/or Esper to draw over other applications. Grant these permissions if prompted.
Step 11: You will now return to the Esper Agent to install any Esper Enterprise applications and complete the onboarding process.

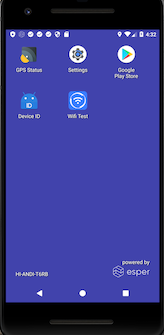

Once onboarding is completed, you’ll see your device set up according to your Blueprint settings. In this example, we’ve onboarded the device in multi-application mode with three Enterprise applications installed from the Esper Cloud and managed with Google Play enabled.
Templates
The steps outlined below are a more detailed version of the same steps provided in the Console. Be sure to have your Provisioning Template created to access the QR code you will use to provision your device.
Step 1: Begin by factory resetting your device.
Step 2: Once the factory reset is completed, on the first setup screen, tap anywhere on the screen six times.
Step 3: If your device first needs to download the QR code reader, you’ll see the QR code setup screen. Suppose you see this screen go to the QR Code Reader Setup section.
Step 4: If your device has the QR code reader in ROM, after tapping six times in the open space of the first setup screen, the QR code reader screen will be opened.
Step 5: Go to the Esper Console and navigate to Provisioning Methods.
From the Select Provisioning Method dropdown, select 6-Tap QR Code.
Then, click on the Template tab and select the provisioning template.
Optionally open the Additional Settings menu to select the language the device will be provisioned with.
Step 6: From the device’s welcome screen, tap until the QR code reader appears. The number of taps may differ by device.
Hold the camera up to the computer screen and center the frame around the QR code.
The QR code is densely populated. If your device’s camera has trouble scanning it, follow these tips:
- Increase your computer screen's brightness
- Move the camera closer to the screen
- Hold the device still for a few seconds once you have adjusted the distance.
You can also toggle to use the old QR code or click on Full Screen to enlarge the QR code. A JSON file can also be downloaded by clicking on Download Config.
After scanning the QR code, if you're on a device with Android version 10+, tap Continue.
Then, tap Continue again on the next screen.
You can also display the QR code by selecting the Provisioning Template from the Select Template drop-down menu and then clicking View QR Code.
Step 7: If your device does not have an active cellular data network connection or isn’t set up to connect to a Wi-Fi access point specified in the QR code to use for provisioning, you will need to connect the device to the internet either using the cellular data or via Wi-Fi. To do so, you will need to either enable your SIM or enter your Wi-Fi access point credentials.
Step 8: You may then see a screen to accept specific terms from Google regarding Esper managing your device. Click ACCEPT & CONTINUE.
Step 9: Once the Esper agent has successfully downloaded, provisioning will start.
If you wish to exit the provisioning process for any reason, click on the Esper logo six times to bring up the option to factory reset the device.
Step 10: If your Provisioning Template enables Google Play, Google Play Services will be updated. Be patient during this process, as it is conducted by Google and depends on their current service quality.
Often, the device will complete provisioning without any permissions needing to be granted on the device. Occasionally, you will need to resolve permissions for Esper to modify System settings and/or Esper to draw over other applications. Please grant these permissions if prompted.
Step 11: You will now return to the Esper agent to install any Esper Enterprise applications and complete the provisioning process.
Provisioning will complete, and you’ll see your device set up according to your provisioning template. In this example, we’ve provisioned in multi-application mode with three Enterprise applications installed from the Esper Cloud and managed Google Play enabled.
Android devices with Google Mobile Services (GMS) support and a camera can be enrolled and provisioned onto Esper using the 6-tap QR code onboarding method. The particular onboarding screens and device onboarding flow vary across Android versions.
Android devices with Google Mobile Services (GMS) support and a camera can be enrolled and provisioned onto Esper using the Android for Work (AFW) provisioning method. The particular provisioning screens and device provisioning flow vary across Android versions.
Notes:
-
6 Tap QR Code support was first delivered in Android 7. On some Android versions, primarily Android 9 and above, some of these screens may not appear at all.
-
Xiaomi/Redmi devices do not support the 6-tap provisioning method.
Device makers and carriers customize the setup process. You'll likely encounter unique setup screens specific to your device.

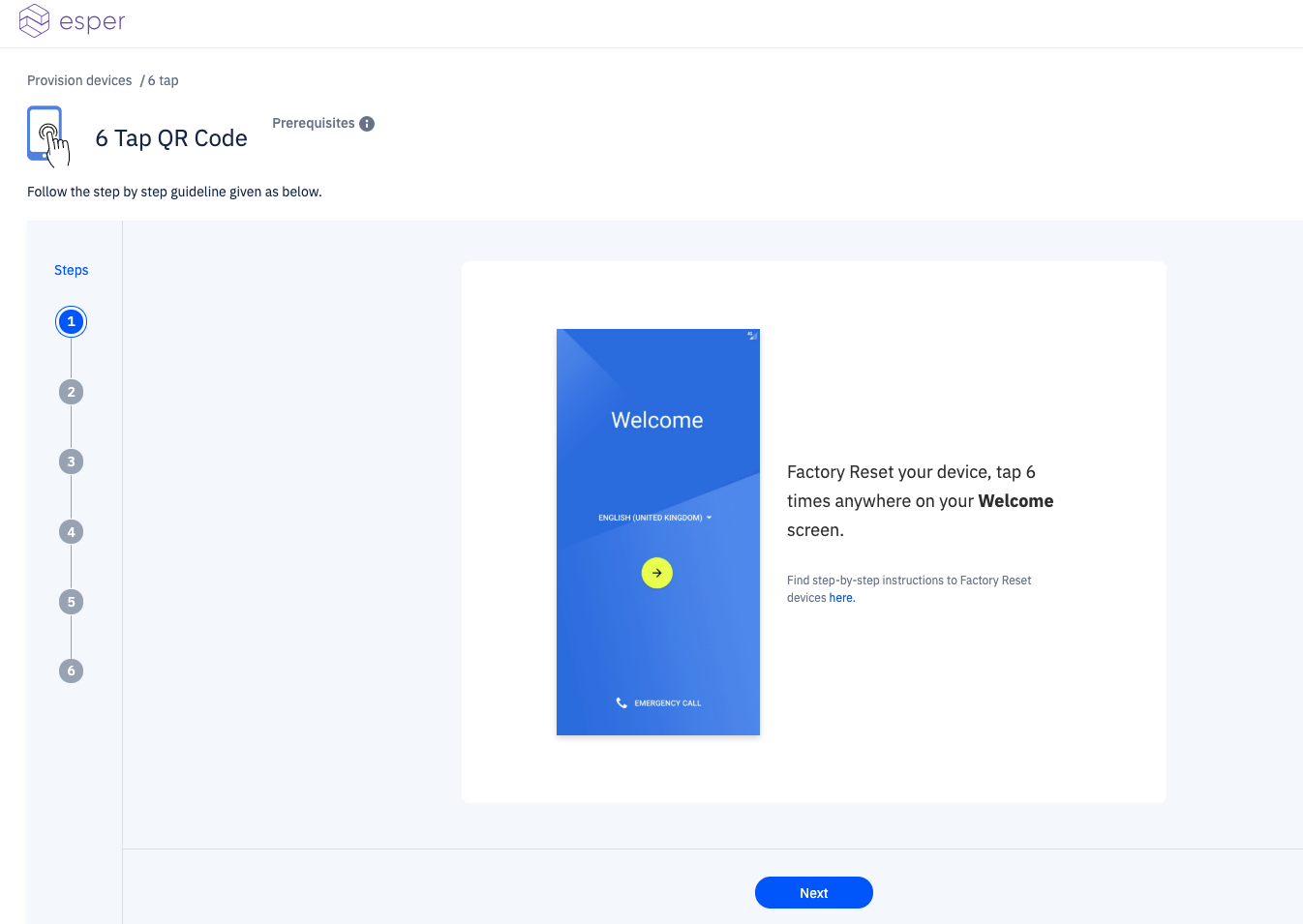

From the Provisioning Methods screen, if you select 6 Tap QR Code, you will be taken step by step through instructions using the 6 Tap QR Code provisioning process. You can progress through these steps by clicking Next.
The steps outlined below are a more detailed version of the same steps provided in the Console. Be sure to have your Provisioning Template created to access the QR code you will use to provision your device.
Step 1: Begin by factory resetting your device.
Step 2: Once the factory reset is completed, on the first setup screen, tap anywhere on the screen six times.
Step 3: If your device first needs to download the QR code reader, you’ll see the QR code setup screen. If you see this screen go to the QR Code Reader Setup section.
Step 4: If your device has the QR code reader in ROM, after tapping six times in the open space of the first set up screen, the QR code reader screen will be opened.
After scanning the QR code, if you're on a device with Android version 10+, tap Continue.
Then, tap Continue again on the next screen.
Step 5: Go to the Esper Console and select 'Provisioning Templates' in the left menu bar. Find the template you want to use, and then select 'View QR code.'
Step 6: The QR code for the template will now appear on your screen.
Step 7: If you are using the instructions provided in 'Provisioning Methods,' you can also display the QR code by selecting the Provisioning Template from the Select Template drop-down menu and then clicking View QR Code.
Step 8: Hold up the device’s camera to your computer screen, centering it on the QR code.
The QR code is densely populated. If your device’s camera has trouble scanning it, follow these tips:
- Increasing brightness of your PC’s screen
- Changing the distance between the camera and the screen - move your device closer or further from the QR code
- Hold the device still for a few seconds once you have adjusted the distance.
Step 9: If your device does not have an active cellular data network connection or isn’t set up to connect to a Wi-Fi access point specified in the QR code to use for provisioning, you will need to connect the device to the internet either using the cellular data or via Wi-Fi. To do so, you will need to either enable your SIM or enter your Wi-Fi access point credentials.
Step 10: You may then see a screen to accept specific terms from Google regarding Esper managing your device. Click ACCEPT & CONTINUE.
Step 11: Once the Esper agent has successfully downloaded, provisioning will start.
If you wish to exit the provisioning process for any reason, click on the Esper logo six times to bring up the option to factory reset the device.
Step 12: If your Provisioning Template enables Google Play, Google Play Services will be updated. Be patient during this process, as it is conducted by Google and depends on their current service quality.
Often, the device will complete provisioning without any permissions needing to be granted on the device. Occasionally, you will need to resolve permissions for Esper to modify System settings and/or Esper to draw over other applications. Please grant these permissions if prompted.
Step 13: You will now return to the Esper agent to install any Esper Enterprise applications and complete the provisioning process.
Provisioning will complete, and you’ll see your device set up according to your provisioning template. In this example, we’ve provisioned in multi-application mode with three Enterprise applications installed from the Esper Cloud and managed Google Play enabled.
