Set Up SSO with SAML and Okta

This guide provides steps for setting up SAML for the Esper Console using the Okta identity provider.

To access SSO, you will need the following:

• Enterprise Administrator access to the Esper console
• Administrative access to Okta

In this article:

Do I Need SAML SSO?

Not all organizations will need SAML SSO. Other methods, such as an email and password, are available in Esper.

Creating a SAML Integration in Okta

Step 1 Creating an Esper App in Okta

Log in to an Okta account with administrative access. Go to the Applications tab, and select ‘Create App Integration’.

Choose SAML 2.0.

In General Settings, name the application and optionally provide a logo. Then press “Next.”

In Configure SAML, fill out the single sign-on URL and Audience URI. Use a temporary URL such as https://esper.cloud. You will need to change this to the actual URL later.

In Audience URI, type in a temporary name such as ‘Esper’. You will change it later.

Press Next. You may need to fill out Okta’s feedback form. Then press Finish.

You’ll be redirected to the Esper SAML application page.

From the Sign-on tab, click on View SAML setup instructions. You may need to scroll down or use the finder to locate View SAML setup instructions.

Copy the Identity Provider Sign-On URL and X.509 certificate’ in their entirety. Save this information in a secure document. You will need to paste this information to the Esper tenant (see Step 3).

Leave the Okta window open, create a new tab or window, and navigate to your Esper tenant.

Setting Up SAML in Esper

Step 2 Adding a New Connection

In your Esper tenant, add a SAML SSO by clicking on your user drop-down and selecting Single Sign-on (SSO).

Then select ‘+Add New Connection’.

Choose SAML as the SSO configuration. Use the identity provider as the “Connection Name.” The Configuration Name will be the name users see as an option before logging in.

Step 3 Providing Okta Details to Esper

In Esper’s “Add New SSO Connection”, input the following information copied from Step 1: - Identity provider Single Sign-On URL - X.509 Certificate - Optional: Sign-out URL

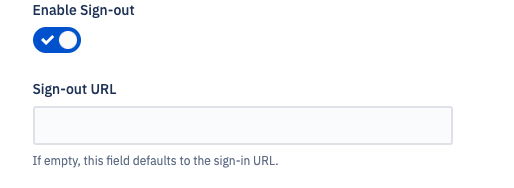

Setting Up Single Sign-out (Optional)

Then press Continue.

Step 4 Finalize SSO Configuration in Okta

You’ve set up SSO on the Esper end, but you still need to provide Okta your Esper tenant’s ACS URL and Entity ID.

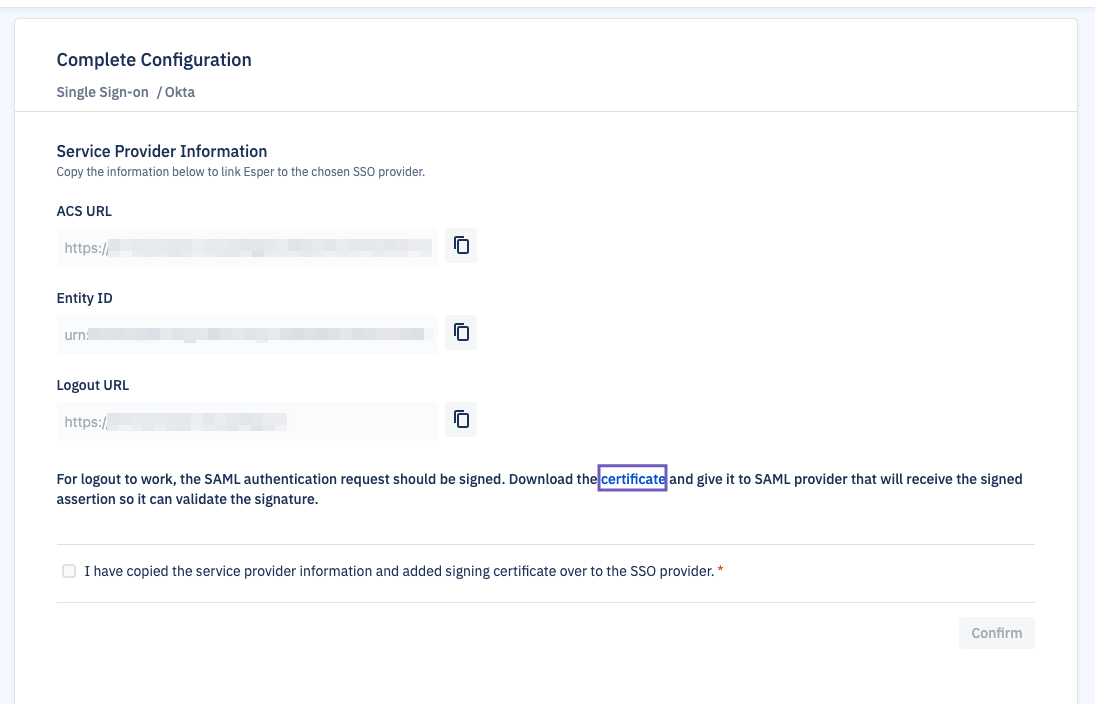

On Esper’s “Complete Configuration” page, copy the ACS URL and Entity ID to a secure document.

Copying the Logout URL (Optional)

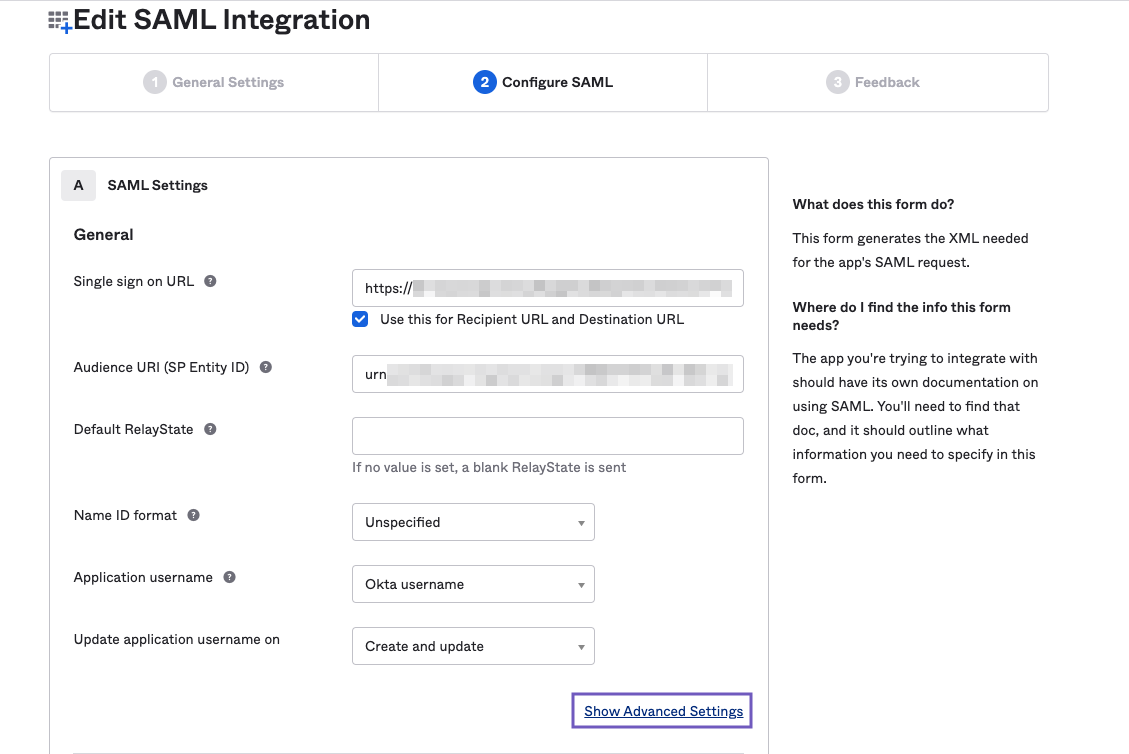

Then, go to your Okta application page. Go to “General” > “SAML Settings” and click Edit. Then click Next.

Under the Configure SAML tab, making the following changes:

• Replace the Sign on URL with Esper’s ACS URL.
• Enable “Use this for Recipient URL and Destination URL.”
• In “Audience URI (SP Entity ID)”, replace the temporary name with Esper’s Entity ID.
• In “Name ID format”, select ‘EmailAddress’ from the drop-down menu.

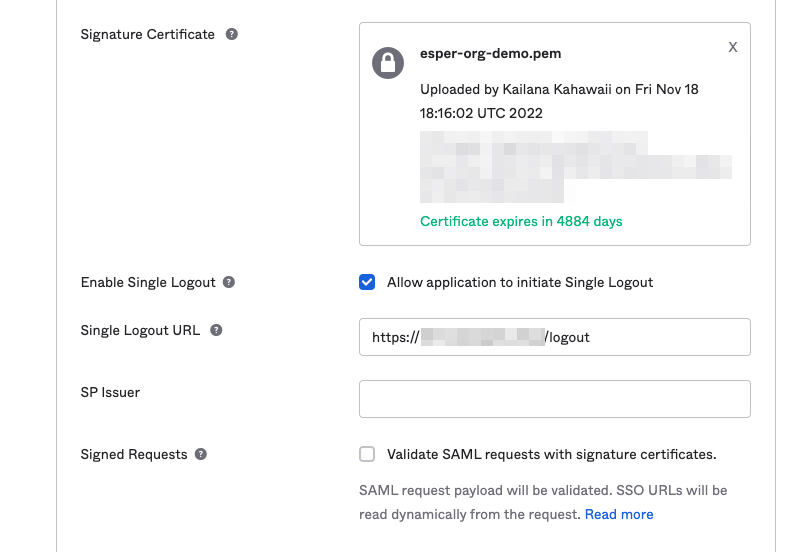

Providing the Logout Certificate to Okta (Optional)

Then, press Next and Finish.

In Esper:

Check that you have copied the service provider information to your SSO provider and press Confirm.

Once SSO is configured, select an authentication option:

• Sign in with either method (email/password or Google authentication)
• Restrict access to only SSO.

We recommend testing that your SSO is working as expected before selecting ‘users must sign in with SSO’. See Step 4 Granting Access to Users.

Before users can log in, you’ll need to add users through Okta and Esper.

Step 4 Granting Access to Users

Once you’ve set up SSO configurations, you’ll need to add users in Okta and Esper.

In Okta, go to the Esper app page. Go to the “Assignments” tab. Select “Assign” and select “Assign to People” or “Assign to Groups.”

Assign users by clicking “Assign” next to their email addresses/User Name or the group name. Provision their username (often their email address) and click “Save and Go Back.” Users will need to log in to Esper using the same email addresses listed in Okta.

You will now need to grant users access in Esper.

In Esper, go to your profile and select User Management. Add a new user by pressing New User. Enter their information and press Continue, then select their access privileges. The user will receive an email to sign up to the Esper tenant.

Users who are invited but have not yet accepted the invitation will appear in the Pending tab.

How to Accept the SSO Invite

Invited users will receive an invitation in their inbox. Once they click on the invitation link, they should choose the SSO login method (see Step 3). Choosing another login method (such as password or Google) will not satisfy the SSO criteria.
