Secure Remote ADB

This feature is available for: ✓ Android

Debug your devices, even if you’re not physically close to them. Android Debug Bridge (adb) allows you to connect with your devices to collect logs or resolve issues from almost any location with a network connection.

With Esper CLI, we provide you secure access to your host machine and devices using our APIs. You can also connect to a device on most networks.

Requirements:

  • Esper CLI
  • An API Key
  • ADB supported and installed on your operating system and device (see Android Developers documentation)
  • A device with remote adb supported and enabled
  • Enterprise Admin access to the Esper Console
  • An Android device running Android 11+ or Android 13+ for TV and WearOS
  • Optionally: a cable to connect your device to the operating system

In this article:

Connecting to Secure Remote ADB

Step 1: ADB Enabled

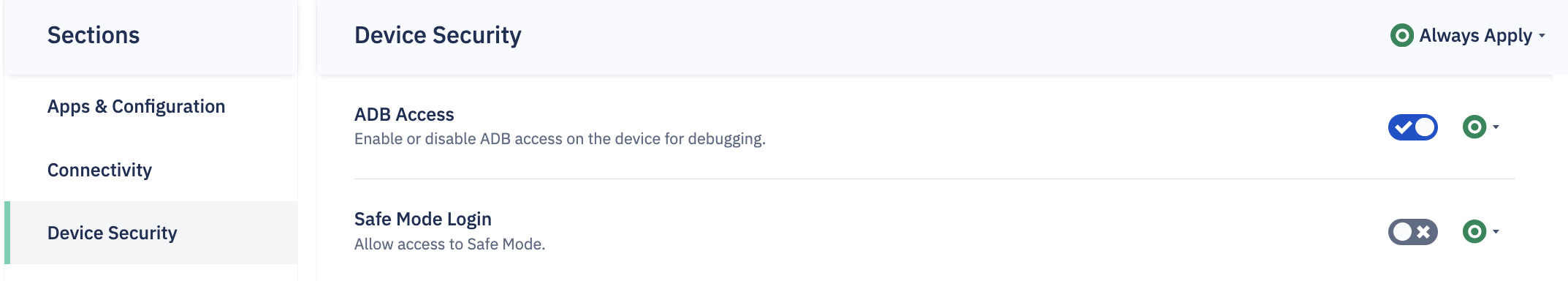

In the device’s Blueprint, enable ADB access in the Device Security section.


Step 2: Connect the Device

Locate the device in Devices & Groups. Go to the device’s Settings tab and navigate to the ADB access section. Then enable it and set the duration of the session.


Connect a cable to the device, or to enable wireless debugging, see Developer Options. Then, navigate to the Android SDK platform-tools directory, and open the TCP mode port.

Tip: You may need to use ./adb instead of adb.
$ adb tcpip 5555

If using a cable, disconnect the device. You should now be able to connect to adb via port 5555 over TCP.

Step 3: Set Up Esper CLI

To set up Esper CLI:

  • Check your Esper CLI version by entering in your terminal:
    $ espercli -v
  • Ensure Esper CLI is >= 0.0.5 to use the secure-adb feature.
  • If needed, upgrade Esper CLI
    $ pip install -U espercli

Step 4: Connect to the Device with Esper CLI

Then, copy the device ID from Esper and use Esper CLI to connect to the device.
Example

$ espercli secureadb connect -d SNA-SNL-1234

Step 5: Connect the Device with ADB

$ adb connect 127.0.0.1:62945

You are now connected to adb.

Step 6: Exit the session

Perform this step to end the active adb connection.

$ adb disconnect

Then reboot the device. Once the device is rebooted, it will no longer be connected to adb.

Adb sessions are not indefinite. You will need to enable adb each time you want to connect to the device (steps 4 and 5 of this guide).

Be sure to properly close a session by running adb disconnect. Improperly closing a session can lead to problems starting a new session.
